SPI Example with Arduino Uno and MKR WiFi 1010

In this article, we'll review an example of communicating between an Arduino Uno and an Arduino MKR WiFi 1010 using the SPI protocol.

We'll create some values on the MRK side and send them to the Uno. Once the Uno receives the values, it will print them out on the Serial Monitor.

Required Components

Circuit Diagram

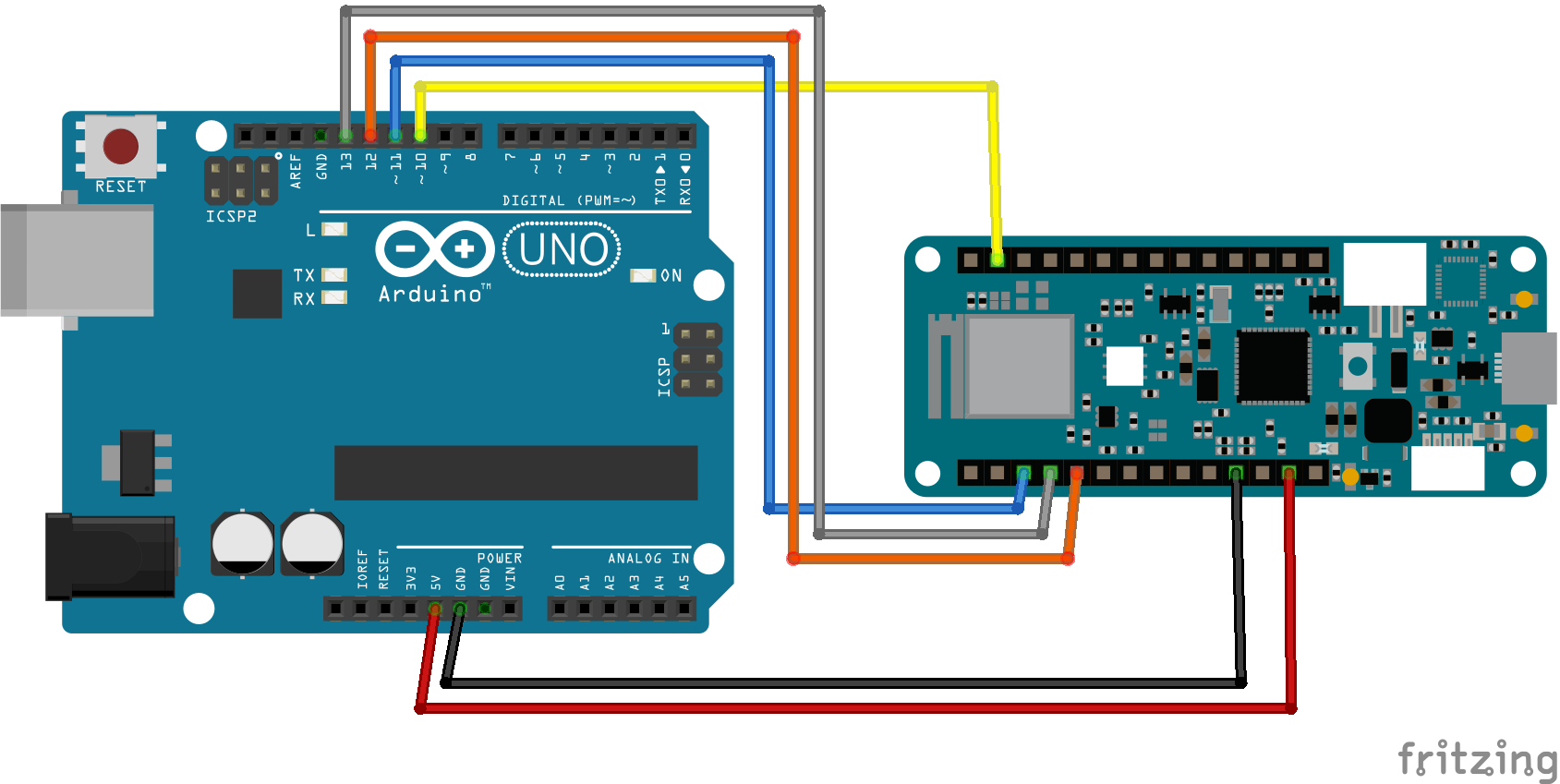

Arduino Uno powers the MKR WiFi 1010. The Uno receives SPI signals from the MKR and displays them on the Monitor.

Code (MKR WiFi 1010 - controller)

Click to see some code.
#include

volatile uint8_t m=0;

char myCmd[5] = {'p', 's', 'l', 'r', '3'};


void setup (void)
{
    pinMode(MOSI, OUTPUT);
    pinMode(MISO, INPUT);
    pinMode(SCK, OUTPUT);
    pinMode(SS, OUTPUT);
    Serial.begin(115200);
    Serial.println();

    digitalWrite(SS, HIGH);

    SPI.begin();
}

void loop (void)
{
    for(byte i = 0; i < sizeof(myCmd); i++) {
        m = (uint8_t)myCmd[i];
        digitalWrite(SS, LOW);
        SPI.transfer(m);
        digitalWrite(SS, HIGH);
        Serial.print("data sent: "); Serial.println(m);
        delay(2000);
    }
}

Code (Uno - peripheral)

Click to see some code.
#include

volatile byte c = 0;
volatile boolean process_it = false;

void setup (void)
{
    pinMode(MOSI, INPUT);
    pinMode(SCK, INPUT);
    pinMode(SS, INPUT);
    pinMode(MISO, OUTPUT);

    // turn on SPI in peripheral mode
    SPCR |= _BV(SPE);
    Serial.begin(115200);

    SPI.attachInterrupt();
}

// SPI interrupt routine
ISR (SPI_STC_vect)
{
    c = SPDR;
    process_it = true;
}  // end of interrupt service routine (ISR) SPI_STC_vect

void loop (void){
    if (process_it) {
        Serial.print("data received: ");
        Serial.println((char)c);
        process_it = false;
    }
}

Wiring

The computer powers the Arduino Uno via USB, and the MKR is powered by 5V from the Uno.

Arduino Uno Arduino MKR WiFi 1010 Description
5V Vin -
GND GND -
10 4 CS
11 8 COPI (MOSI)
12 10 CIPO (MISO)
13 9 SCK

Results

Once everything is connected, you should see some values displayed in the Serial Monitor from the Uno.

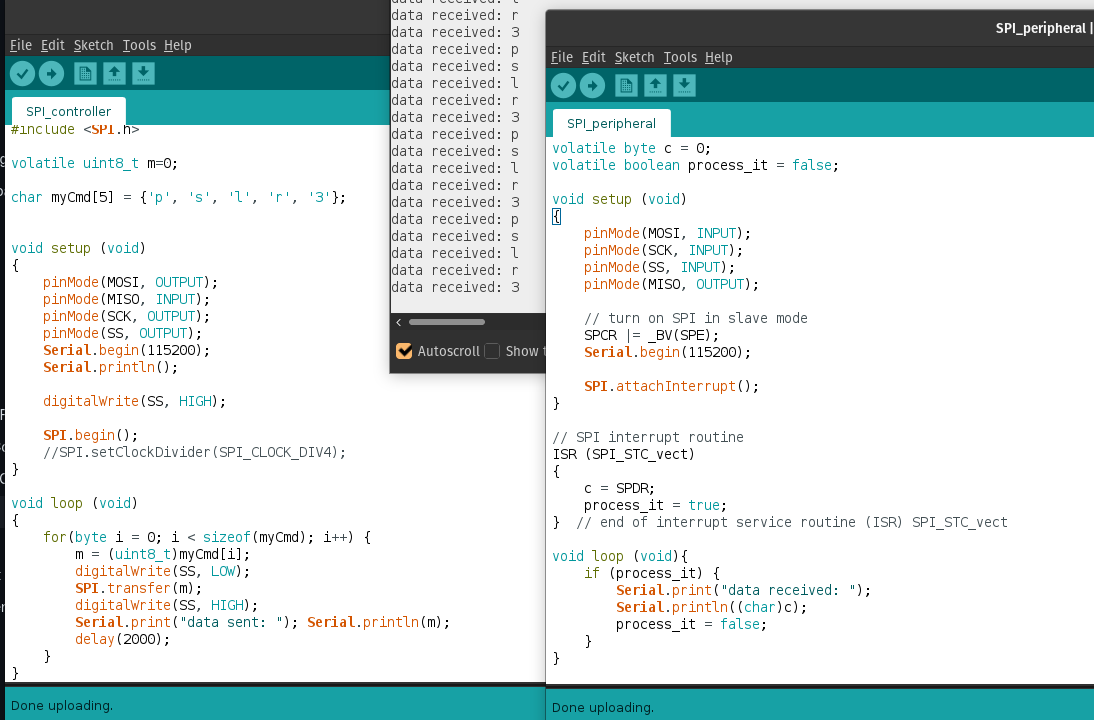

Image with code and values printing on Serial Monitor between them.

Well done!


Thank you for reading.
